High Capacity Bag Filter Vessel , Liquid Filter Housing P2P

High capacity bag filter housing P2P size for water treatment industry

Working principle

The filter bag is supported by the stainless steel mesh inside. The liquid flows into the chamber via inlet, and go through the filter bag. The impurities will be blocked into the filter bag.The filter bag can be reused repeatedly after washing or cleaning. It is easy to replace the filter bags.

The filter is features of no material consumption and low operation cost

Applications

Chemical industry, pharmacy, automobile industry, light industry, food industry, electroplating industry and so on.

Advantage

High capacity , small size

Easy to replace the filter bag, no need clean and labor saving

After cleaning the filter bag can be used repeatedly to save cost

Filter precision reached at 0.5 micron

Low leakage risk ensures high quality

High working pressure, low pressure loss, low operation cost and energy saving

Widely applications, flexible use, various installation model for choice

Remarks

Max capacity is the reference value base on water test, the actual value can be different because of liquid viscosity, solid content and pressure difference.

The material can be carbon steel,SUS 304 and SUS 316L and PP.

According to the nature and temperature of the material filtered, the O Ring material can be customized to meet your needs

The lock method of the filter can be clamp type , hasp type and eye bolts types.

Specifications

Package Details:wooden boxes into container Bag filter housing

Delivery Time:Shipped in 15 days

FAQ

1. Can you produce the bag filter house according to our drawing or samples ?

   Yes, of course we can

2. Can you accept print our Logo on the valve handle cover ?

   Yes, we can if you need

3. How about the delivery time ?

   With the standard products, normally delivery time will be 10 days

bag filter vessel

stainless steel filter housing

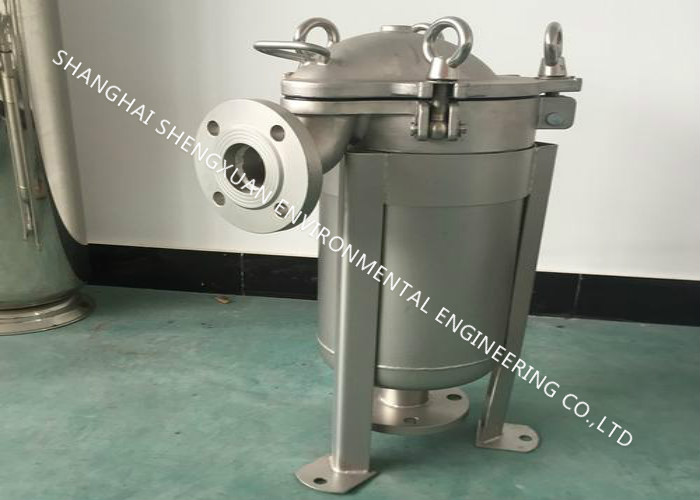

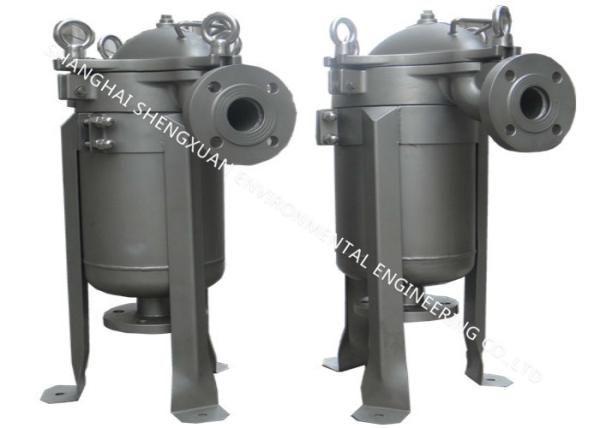

High Capacity Bag Filter Vessel , Liquid Filter Housing P2P Images
